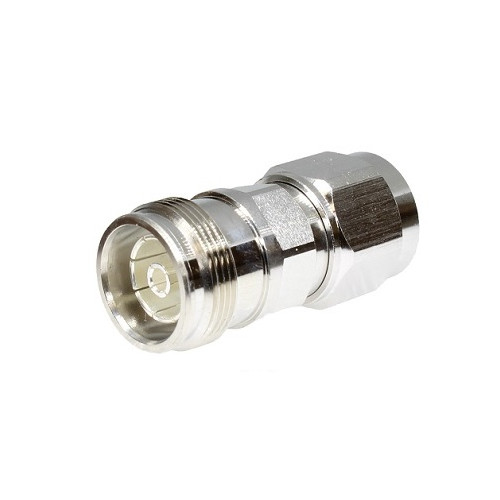

Adapter 4.3-10 Female to N-Type Male (290-5141-088)

Adapter 4.3-10 Female to N-Type Male (290-5141-088)

Part Code: 43F-NM
  • Characteristic Impedance- 50 ohm
  • Frequency Range Max. - DC - 6GHz
  • VSWR - ≤1.10
  • Dielectric Withstanding Voltage - ≥2500V RMS,50Hz, at sea level
  • Dielectric Resistance - ≥5000MΩ
  • Contact Resistance -Outer contact≤1mΩ; Center Contact≤1.0mΩ
  • Insertion loss - ≤0.1dB
  • PIM3 - ≤-160dBc




Conductor
  • Phosphor Bronze, Gold Plated
Material
  • Brass, Try-Alloy
