MAFI Modular Free standing Roof Top Solution 2x2

About the Product

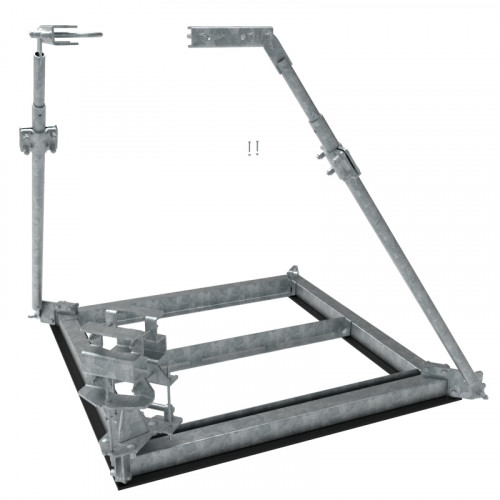

This freestanding structure delivers robust rooftop equipment-pole(s) without the need to penetrate weatherproofing layers. Adjustable ballast- carrying cross beams enable the use of different sizes of concrete paving slabs depending on availability. The pole(s) can be kept vertical even when the surface is sloping up to 4°. The default pole size is Ø114.3 (4.5in) (Designer to confirm length and section), but you can also specify Ø76.1 (3in) by using the product option U-bolt 2801-1. The poles can be folded flat, facilitating both installation and maintenance.

Product Options

42071: Concrete slabs as ballast weight. Half ballast: 4 pcs, full ballast: 8 pcs. Maximum ballast weight: 224 kg (494 lb).

91124: Additional strut for yoke arms to be attached to Ø 76.1 mm (3") pole.

2801-1: U-bolt kit to fit Ø 76.1 mm (3") pole.
